Features
|
Model |
|

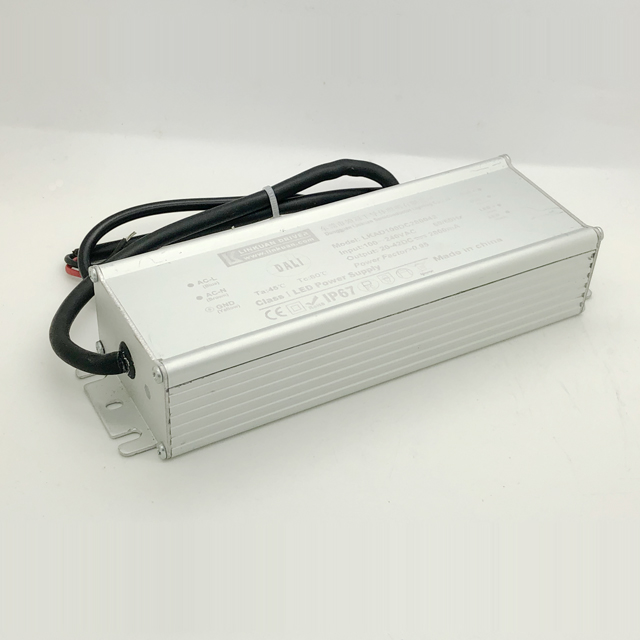

LKAD0110D-D |
|
輸出Output |
電壓/Rated voltage |
30V-40V |
|
空載電壓/No-load Voltage |
50V |
|
|
DC電壓范圍/DC voltage range |
30V-40V |
|
|
DC電流范圍/DC current range |
2500mA +-20mA |
|
|
電流精度/Current precision |
(+/-)5% |
|
|
額定功率/Rated power |
115W |
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
輸入Input |
AC電壓范圍/AC Voltage range |
200-265VAC |
|
頻率/Frequency |
50/60hz |
|
|
諧波/THD |
≤15% |
|
|
功率因數/Power factor |
0.968/220VAC |
|
|
使用環境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+50℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認證標識/Certificate |
CE |
|
耐壓/Withstand voltage |
4000V |
|
|
其他 |
尺寸/Size |
L195*W62*H39mm |
|
重量/Net weight |
|
