Features

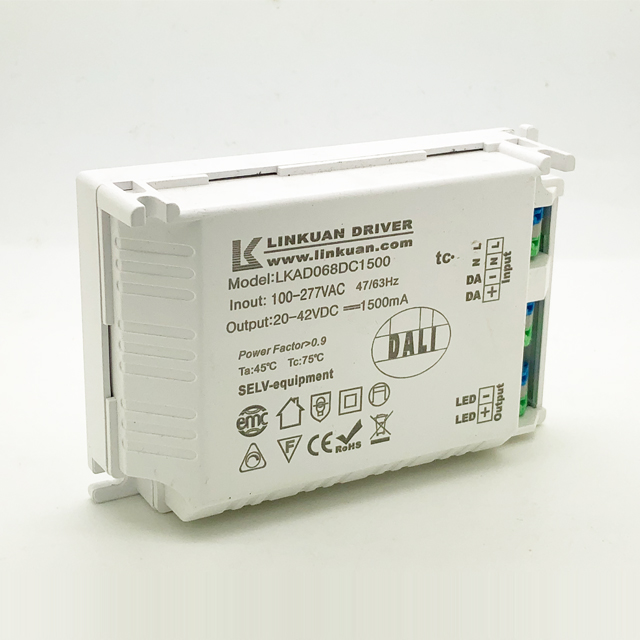

| Model | LKAD068D | |||||||
| 輸入 Input | AC電壓范圍/AC Voltage range | 200-240V | 200-240V | |||||
| 頻率/Frequency | 50/60hz | 50/60hz | ||||||
| 諧波/THD | ≤45% | ≤15% | ||||||
| 功率因數/Power factor | 0.91/230VAC | 0.94/230VAC | ||||||
| 輸出 Output | 額定電壓/Rated voltage | 40V | 40V | |||||
| 空載電壓/No-load Voltage | 50V | 50V | ||||||
| DC電壓范圍/DC voltage range | 30-40V | 30-40V | ||||||
| DC電流范圍/DC current range | 1440-1550mA | 880-910mA | ||||||
| 電流精度/Current precision | ±3% | ±3% | ||||||
| 額定功率/Rated power | 60W | 36W | ||||||
| 開機延時/Setup Time | ≤0.5s/230VAC | ≤0.5s/230VAC | ||||||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | ||||||
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | |||||||
| 安全和電磁兼容 | 認證編號/Certificate | ---- | ||||||
| 其他 | 尺寸/Size | L123*W79*H33mm | ||||||
| 重量/Net weight | ||||||||
