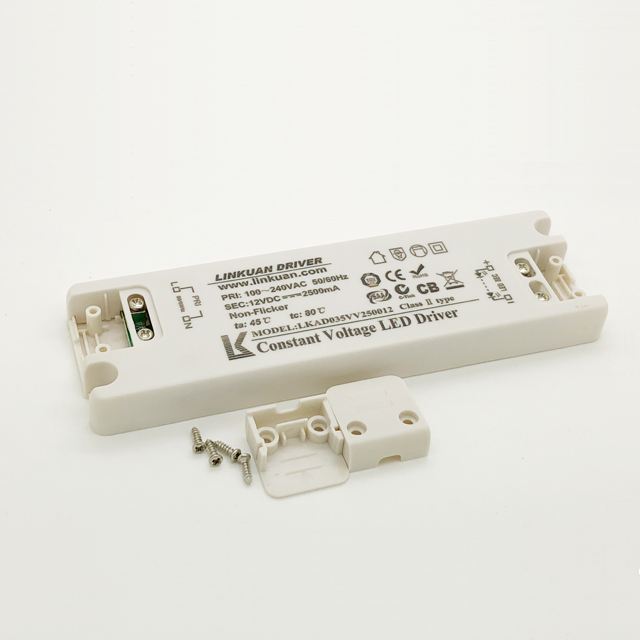

LKAD035V 30W constant voltage 12V/24V 2.5A/1.25A slim led driver

Features

• 200-240Vac(50/60Hz) Input
• Hight efficiency,hight PF,good steady;
• Adopting the original constant voltage and current isolation scheme of the United States.

• independent, ClassⅡconstant current type;
• short circuit/over load/over current/ over temperature protection;
• 100% full load burn-in test;
• degree of protection IP20;
• suitable for LED lighting,ceiling light,down light and panel light;
• 5 years warranty.

---

More Details

Model			LKAD035V
輸入             Input	AC電壓范圍/AC Voltage range		100-264V
	頻率/Frequency		50/60hz
	諧波/THD
	功率因數/Power factor		0.58/230VAC
輸出      Output	額定電壓/Rated voltage		24V
	空載電壓/No-load Voltage		24.5V
	DC電壓范圍/DC voltage range		23.2-24V
	DC電流范圍/DC current range		1000-1500mA
	電流精度/Current precision		(+/-)5%
	額定功率/Rated power		36W
	開機延時/Setup Time		≤0.5s/230VAC
使用環境    Environment Requirements	工作溫度/濕度要求                    Operating Temp./RH		-30～+45℃/20～95%
	儲存溫度,濕度要求                   Storage Temp./RH		-40～+80℃/10～95%
安全和電磁兼容	認證編號/Certificate		SAA:SF201501544
			TUV:64.140.16.00628.01
其他	尺寸/Size		L165.3*W50.2*H14.7mm
