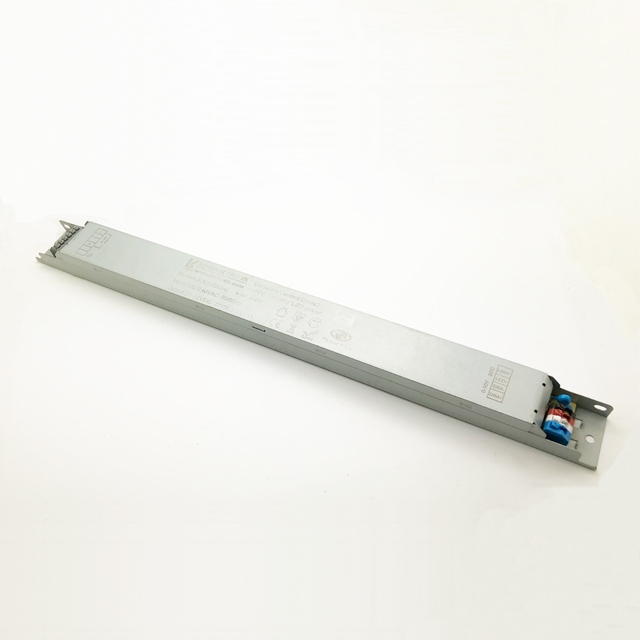

LKAD090D 84W 25-42V 2000mA Linear Lamp triac dimmable led driver

Features

• 200-240Vacc(50/60Hz) Input
• Hight efficiency,hight PF,good steady;
• Isolated,leading (or trailing) triac dimming,dimming much smoothly

• independent, ClassⅡconstant current type;
• short circuit/over load/over current/ over temperature protection;
• 100% full load burn-in test;
• degree of protection IP20;
• Special for LED linear lamp, LED grille lamp;
• 5 years warranty.

---

More Details

Model		LKAD090D
輸入Input	輸入電壓范圍/Input Voltage rang	100-120V
	頻率/Frequency	50/60hz
	諧波/THD	≤15%
	功率因數/Power factor	0.99/120VAC
	輸入電流 Input current（mA)	854MA
	待機功耗 stand_by power	≤1W/120VAC
	浪涌電流 Inrush Current(Max.)	≤35A@120VAC
	漏電流 Leakage Current	<1MA/110V
輸出Output	額定電壓/Rated voltage	40V
	空載電壓/No-load Voltage	≤49V
	工作電壓范圍/working voltage ra	20-40V
	額定電流/Rated current	2000mA±20MA
	電流精度/Current precision	(+/-)3%
	額定功率/Rated power	95W
	開機延時/Setup Time	≤0.5s/230VAC
	輸出線性調整率Output Line Regul	±5%
	溫度漂移temperature drift	±10% Page 1 of 4

保護特性	開路保護Output open circuit pro	有/Enable
	短路保護Short Circuit Protectio	打嗝模式/Hiccup mode
使用環境Environment Requirements	工作溫度/濕度要求Operating Temp./RH	-30～+45℃/20～95%
	儲存溫度,濕度要求Storage Temp./RH	-40～+80℃/10～95%
安全和電磁兼容 Safety & EMC	認證編號/Certificate	符合CE/ meet CE
	耐壓 withstand voltage	3750MA/60S
	絕緣阻抗insulation resistance	500V>100M
	浪涌等級EMS immunity	IEC6100-4-5(L-N:1KV)
	安規標準Safety standard	EN61347,GB19510
	電磁干擾electromagnetic interfe
	電磁抗干擾Electromagnetic Susce
其他Others	IP等級說明 IP level description	IP20
	質保說明Warranty instructions	3年/3 years
	尺寸/Size	0.4*355*30*21MM
	重量/Netweight
注意事項matters needing attention	1.建議客戶在燈具供電回路中安裝過欠壓保護與浪涌保護裝置，以確保用電安全 1. pls suggest the client to instalt the unde voltage protection device and surge protection device to ensure Electricity safety 2. 電源作為整燈燈具中的一個零部件與終端設備結合使用，因EMC性能受LED燈具及走線的影響，終端設備制   造商需對整套裝置重新進行EMC確認。 2. The power supply is considered a component which will be installed a final equipment.The final equipment must be re-confirmed that it still meets EMC directives. 3. 客戶在使用電源時，注意電源通風散熱和環境溫度，超過TA時要做降額使用 3.Becareful of ambient temperature and heat dissipation during the client use this unit, When exceeding TA, the power supply shall be derated
