| Authentication: |
|
Model |
|

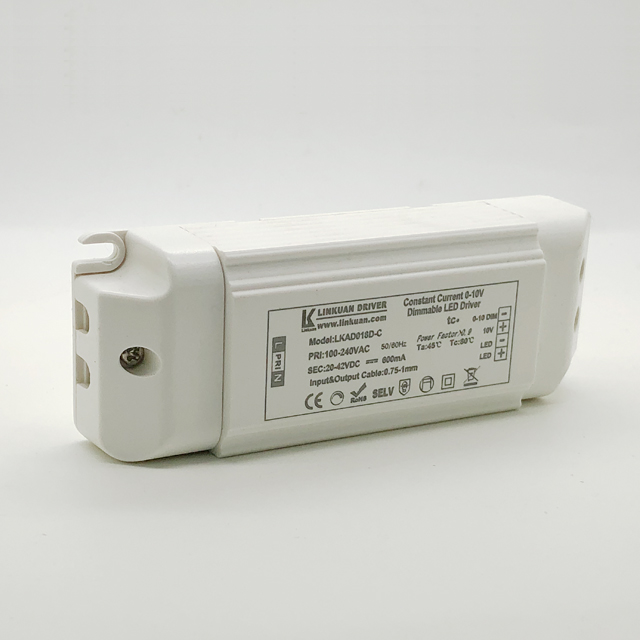

LKAD018D |
|
輸入 Input |
AC電壓范圍/AC Voltage range |
100-240V |
|
頻率/Frequency |
50/60hz |
|
|
諧波/THD |
<10% |
|
|
功率因數/Power factor |
0.95/230VAC |
|
|
輸出 Output |
額定電壓/Rated voltage |
40V |
|
空載電壓/No-load Voltage |
47V |
|
|
DC電壓范圍/DC voltage range |
20-40V |
|
|
DC電流范圍/DC current range |
570--630mA |
|
|
電流精度/Current precision |
±3% |
|
|
額定功率/Rated power |
25W |
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
使用環境Environment Requirements |
工作溫度/濕度要求 Operating Temp./RH |
-30～+45℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認證編號/Certificate |
---- |
|
其他 |
尺寸/Size |
L123mm*W44mm*H27.3mm |
|
重量/Net weight |
80g |
