| Authentication: |

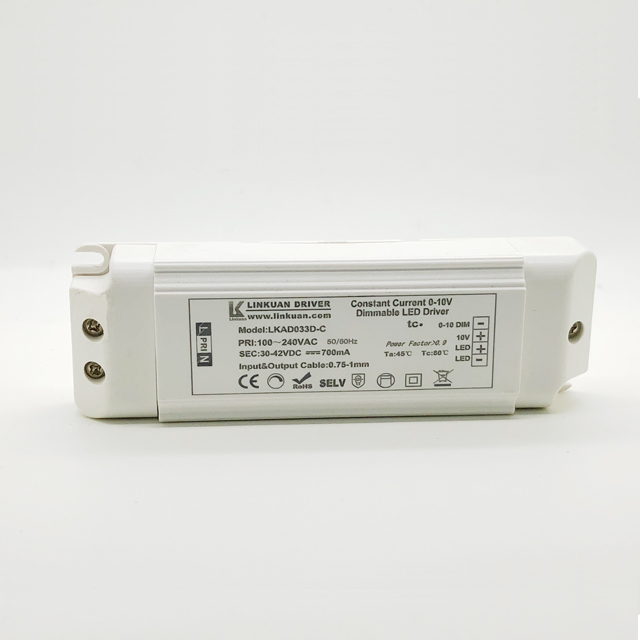

| Model | LKAD033D-L | ||
| 輸入 Input | 輸入電壓范圍/Input Voltage | 100-240V | |
| 頻率/Frequency | 50/60hz | ||
| 諧波/THD | ≤15% | ||
| 功率因數/Power factor | 0.95/240VAC | ||
| 輸入電流 Input current（mA | 96MA | ||
| 待機功耗 stand_by power | ≦0.8W | ||
| 浪涌電流 Inrush Current(Ma | ≤30A@230VAC | ||
| 漏電流 Leakage Current | <1MA/240V | ||
| 輸出 Output | 額定電壓/Rated voltage | 40V | |
| 空載電壓/No-load Voltage | ≦46V | ||
| 工作電壓范圍/working volta | 30-42V | ||
| 可選擇電流規格/selectable | 600MA | ||
| 電流精度/Current precision | (+/-)3% | ||
| 額定功率/Rated power | 24W | ||
| 開機延時/Setup Time | ≤0.5s/240VAC | ||
| 輸出線性調整率Output Line | ±5% | ||
| 溫度漂移temperature drift | ±10% | ||
| 保護特性 | 開路保護Output open circui | 有/Enable | |
| 短路保護Short Circuit Prot | 打嗝模式/Hiccup mode | ||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | |
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | ||
