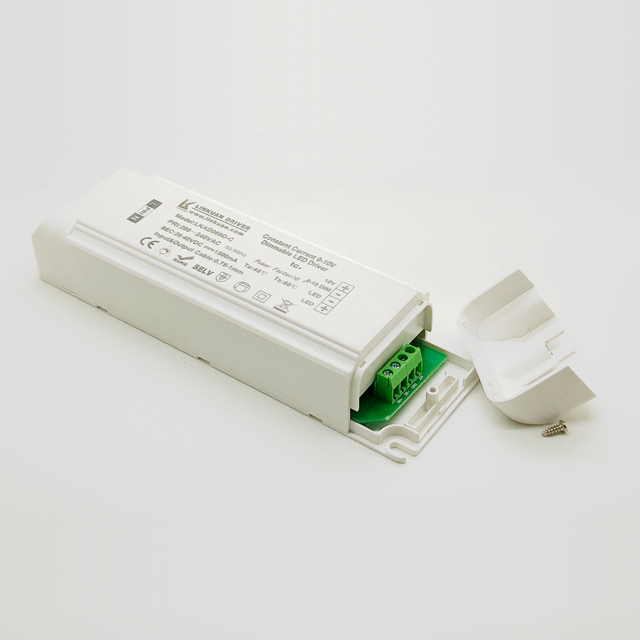

        LKAD069D-C 75W 5-42V 1800mA 0-10V Dimming LED drivers
        • LKAD069D-C 75W 5-42V 1800mA 0-10V Dimming LED drivers

        LKAD069D-C 75W 5-42V 1800mA 0-10V Dimming LED drivers

        • Product model : LKAD069D-C
        • Input voltage : 200-240Vac
        • Output power(W) : 75W
        • Output voltage : 5-42Vdc
        • Output current(A) : 1200-1800mA
        • Light adjustment : 0-10V Dimming
        • Size(MM) : 185x55x32mm
        Authentication:
        Skype
        • Product Detail
        • Send Inquiry
        • Download

        LKAD069D-C 75W 5-42V 1800mA 0-10V Dimming LED drivers


        Features

        • 200-240VAC(50/60Hz) Input
        • High efficiency, high power factor, high stability, high light ratio
        • Flicker free
        • Short circuit,over voltage,over current and over temperature protection;
        • Remote control performance is stable, any angle direction can be controlled.
        • independent, ClassⅡ constant current type;
        • degree of protection IP20;
        • can be achieved Lighting,ceiling light,down light and panel light;
        • 3 years warranty.


        More Details

        Model LKAD069D-C
        輸入             Input AC電壓范圍/AC Voltage range 200-240V
        頻率/Frequency 50/60hz
        諧波/THD <15%
        功率因數/Power factor 0.96/230VAC
        輸出      Output 額定電壓/Rated voltage 40V
        空載電壓/No-load Voltage 48V
        DC電壓范圍/DC voltage range 20-42V
        DC電流范圍/DC current range 1450-1500ma
        電流精度/Current precision (+/-)3%
        額定功率/Rated power 60W
        開機延時/Setup Time ≤0.5s/230VAC
        使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30~+45℃/20~95%
        儲存溫度,濕度要求                   Storage Temp./RH  -40~+80℃/10~95%
        安全和電磁兼容 認證編號/Certificate
        其他 尺寸/Size 185(L)X55(W)X37(H)mm
        重量/Net weight
